FEATURES
- Easy Installation
- Less Maintenance
- Environment Friendly
- Power saving
- Inlet temperature 40 C degree
- Dew point 2 C - 3 C degree

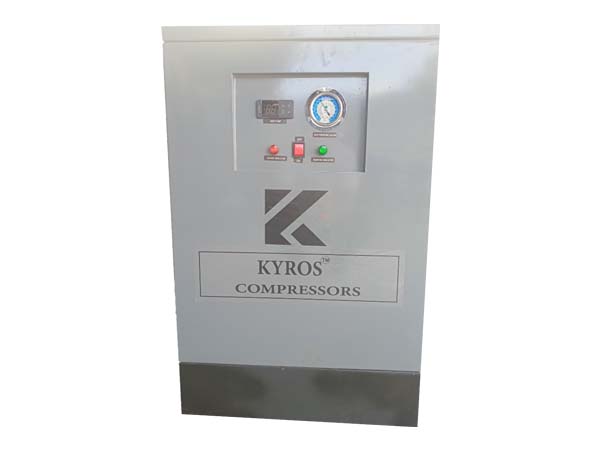

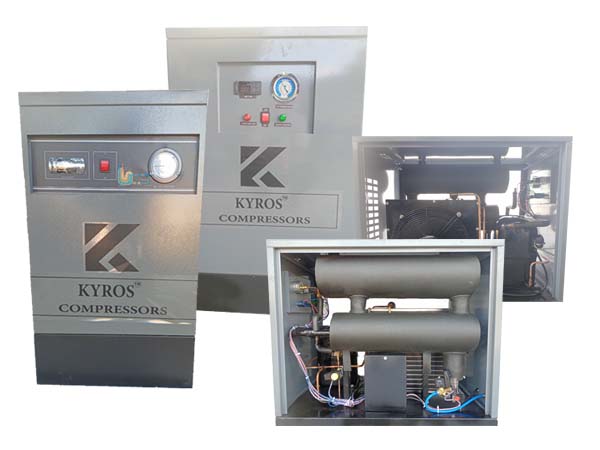

Air Dryer

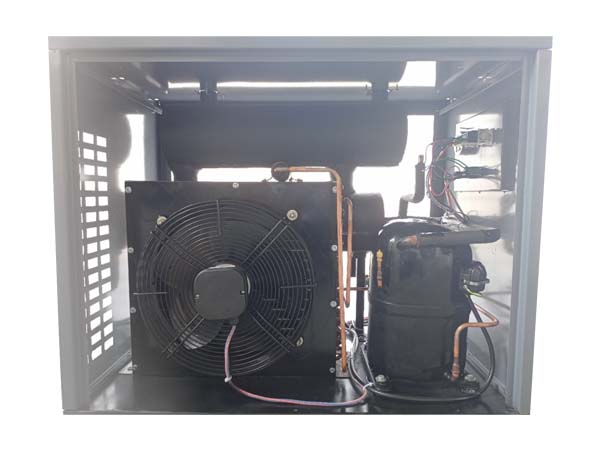

Air Dryer 2

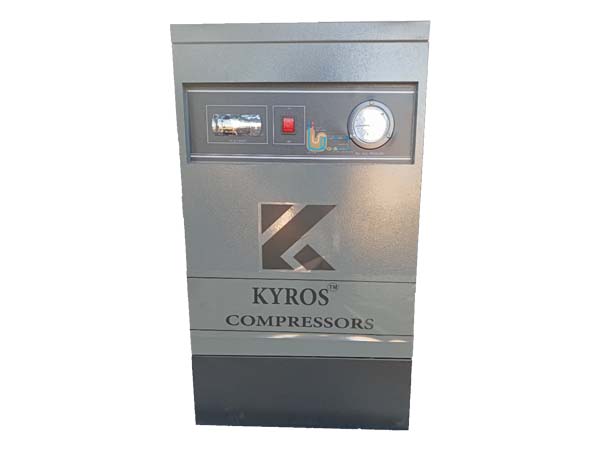

Air Dryer 3
Air Dryer 4
TECHNICAL SPECIFICATION
| BASE MODEL | CFM | PRESSURE | AIR CONNECTION IN/OUT | RATED POWER* KW AIR COOLED |
|---|---|---|---|---|
| KC - 10AD | 45 | 16 | 1/2 BSP(F) | 0.2 |
| KC - 15AD | 68 | 16 | 1BSP(F) | 0.4 |
| KC - 20AD | 85 | 16 | 1BSP(F) | 0.5 |
| KC - 25AD | 100 | 16 | 11/2 BSP(F) | 0.6 |
| KC - 30AD | 134 | 16 | 1BSP(F) | 1 |
| KC - 40AD | 180 | 16 | 1BSP(F) | 1 |
| KC - 30AD | 134 | 16 | 11/2 BSP(F) | 0.9 |
| KC - 50AD | 250 | 16 | 2 BSP(F) | 1.4 |
| KC - 60AD | 300 | 16 | 2 BSP(F) | 1.6 |
| KC - 75AD | 400 | 16 | 2 BSP(F) | 1.9 |
| KC - 100AD | 500 | 16 | 3NBASME Flg | 2.3 |
| KC - 125AD | 600 | 16 | 3”NBASME Flg | 2.8 |
| KC - 180AD | 800 | 16 | 3”NBASME Flg | 3.8 |
| KC - 220AD | 1000 | 16 | 4”NBASME Flg | 5 |
| KC - 250AD | 1250 | 16 | 4”NBASME Flg | 5.7 |
| KC -300AD | 1500 | 12.5 | 5”NBASME Flg | 6.8 |
| KC - 400AD | 2000 | 12.5 | 6”NBASME Flg | 8.7 |
| KC - 500AD | 2500 | 12.5 | 6”NBASME Flg | 11 |
