AIR OIL SEPARATOR CORE
Adopts industry-leading screw air end, high efficiency and Low rotating speed. With the third-generation tooth type of rotor, cutting-edge geometric design-stable, reliable, energy saving and long service life.
FLEXIBLE COUPLING DIRECT DRIVEN
Adopts direct connection structure without any Loss, transmission efficiency is 100%, maintenance cost is low, disassemble is convenient, greatly save the downtime. Easy maintenance--air end maintenance only need to disassemble the air end, motor maintenance only needs to disassemble motor, do not affect each other
INTELLIGENT MICROCOMPUTER CONTROL SYSTEM
Adopts intelligent control system to ensure fully automated intelligent operation, detect exhaust pressure, temperature and other field data, and control the exhaust pressure within the pre-set pressure range through the intake valve, so as to output stable pressure.
SAFE, RELIABLE AND EFFICIENT MOTOR
Adopts unique low-speed motor, protection grade Lp55, insulation grade F, suitable for bad working conditions. High balance precision, high-speedd running smoothly.
UNIQUE HEAT REMOVAL & COOLING SYSTEM
Adopts advanced design, harmonica radiator, effectively increase the heat dissipation area, run faster and smoother, and the heat of the machine in time. The heat exchange effect of the same area is 30% higher than that of the traditional cooler. Even in the Asia-Pacific region with high temperature and high humidity, the normal operation of the unit can be guaranteed.

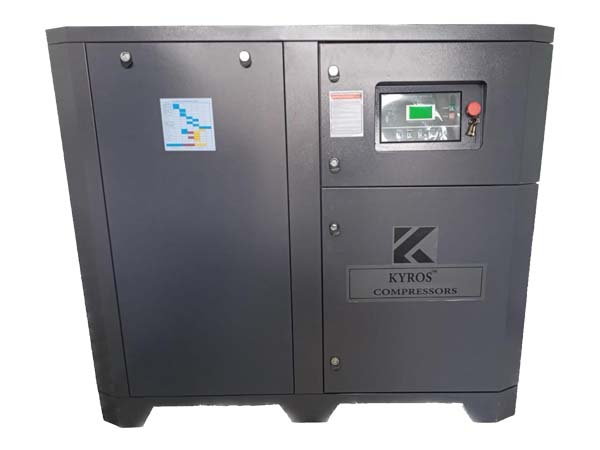

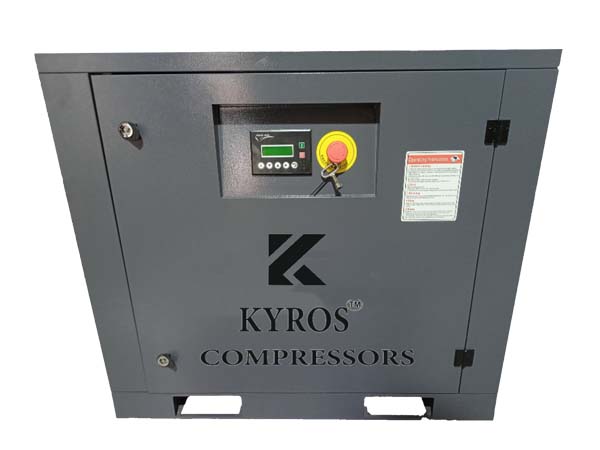

10 HP Screw Air Compressor

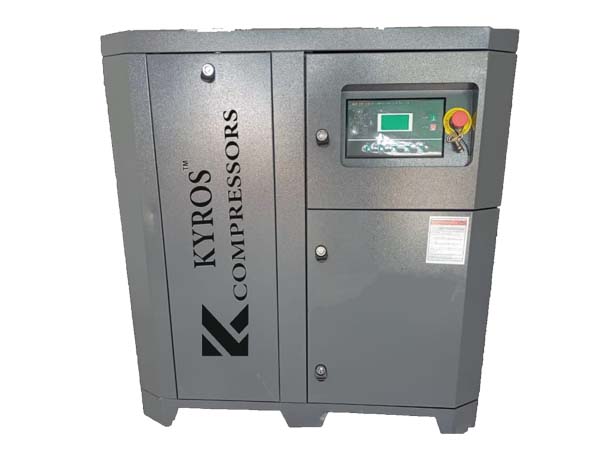

15 HP Screw Air Compressor
30 HP Screw Air Compressor

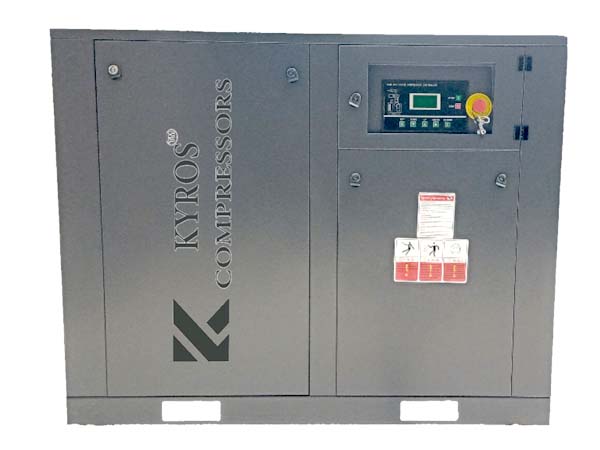

60 HP Screw Air Compressor
TECHNICAL SPECIFICATION
| MODEL | PRESSURE | INSTALLED MOTER RATING (KW) | CFM | M3 / MIN | MACHINE DIMENSION (L*B*H) MM /(WEIGHT) KG | NOISE (dB) | AIR OUTLET (INCH) |
|---|---|---|---|---|---|---|---|
| KC - 10HP D | 08 / 10 / 13 | 7.5 | 46 / 34 / 30 | 1.3 / 0.96 / 0.85 | 900*600*800 / 220 | 60 + 2 | G 1/2” |
| KC - 15HP D | 08 / 10 / 13 | 11 | 65 / 46 / 39 | 1.84 / 1.3 / 1.1 | 1100*730*980* / 350 | 62 + 2 | G 3.4” |
| KC - 20HP D | 08 / 10 / 13 | 15 | 88 / 71 / 60 | 2.49 / 2.01 / 1.7 | 1100*730*980 / 360 | 62 + 2 | G 3/4” |
| KC - 25HP D | 08 / 10 / 13 | 18.5 | 113 / 95 / 78 | 3.2 / 2.69 / 2.21 | 1200*880*1080 / 510 | 64 + 2 | G 1” |
| KC - 30HP D | 08 / 10 / 13 | 22 | 131 / 113 / 99 | 3.71 / 3.2 / 2.8 | 1200*880*1080 / 510 | 64 + 2 | G 1” |
| KC - 40HP D | 08 / 10 / 13 | 30 | 181 / 160 / 124 | 5.12 / 4.53 / 3.51 | 1460*980*1230* / 650 | 66 + 2 | G 1 1/2” |
| KC - 50HP D | 08 / 10 / 13 | 37 | 240 / 191 / 138 | 6.8 / 5.41 / 3.91 | 1460*980*1230 / 700 | 66 + 2 | G 1 1/2” |
| KC - 60HP D | 08 / 10 / 13 | 45 | 275 / 242 / 212 | 7.8 / 6.9 / 6.00 | 1460*980*1230 / 780 | 66 + 2 | G 1 1/2” |
| KC - 75HP D | 08 / 10 / 13 | 55 | 365 / 307 / 265 | 10.33 / 8.69 / 7.5 | 1750*1280*1590 / 1250 | 68 + 2 | G 2” |
| KC - 100HP D | 08 / 10 / 13 | 75 | 476 / 410 / 346 | 13.48 / 11.61 / 9.8 | 1750*1280*1590 / 1350 | 68 + 2 | G 2” |
| KC - 120HP D | 08 / 10 / 13 | 90 | 561 / 501 / 419 | 15.88 / 14.18 / 11.86 | 2450*1660*1700 / 1950 | 70 + 2 | G 2 1/2” |
| KC - 150HP D | 08 / 10 / 13 | 110 | 717 / 600 / 516 | 20.3 / 16.99 / 14.61 | 2450*1660*1700 / 2200 | 70 + 2 | G 2 1/2” |
| KC - 175HP D | 08 / 10 / 13 | 132 | 883 / 706 / 636 | 25 / 19.99 / 18.01 | 2450*1660*1700 / 2500 | 70 + 2 | G 2 1/2” |
| KC - 220HP D | 08 / 10 / 13 | 160 | 1035 / 930 / 740 | 29.3 / 26.33 / 20.95 | 2700*1460*1900 / 3480 | 78 + 2 | G 3” |
