Vacuum Medical Vacuum System - Centralized
Round the clock suction
Hospitals and medical institutions everywhere demand high levels of reliability from the equipment used, and medical vacuum systems are not exception. Medical vacuum/section is as indispensible as medical as in a medical gas pipeline system.
The source equipment of these systems is governed by quality and reliability guidelines of ISO, HTM, NFPA, US, European pharmacopeia, NABH, etc.
RELIABILITY AT THE CORE

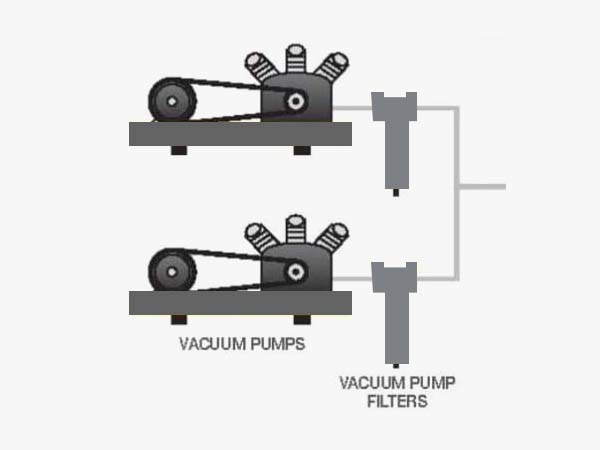

This vacuum pumps are dry, reciprocating type pumps know for their simple design, unmatched performance and long-term reliability. They create round-the- clock medical vacuum for all your medical and surgical applications.
MODULAR INGENUITY - EASY SCALABILITYM
Our entire range of Medical systems is modular and scalable. This significantly increases redundancy and reliability with flexibility to increase the capacity as and when required.
We ensure absolute reliability by integrating backup/stand-by of every critical component of the system, continuing functioning even in the event of a breakdown or maintenance.
EXPERIENCE + EXPERTISE
Built on its reputation for reliability and 200 + installation in the industry, Dint-Tech medical air & vacuum systems are the most widely installed systems across India. Installed systems range from Hospital and Medical institutions operating 2 to 50+ ventilators simultaneously.
All this systems are delivered with Hassel-free concept to commissioning approach and combines affordability, long life and effective after sales-service support.
TECHNICAL SPECIFICATION
| SN | MODEL | Displacement | Moter | ||
|---|---|---|---|---|---|
| LPM | CFM | HP | KW | ||
| 1 | KC V-02 | 481 | 17 | 2 | 1.5 |
| 2 | KC V-03 | 878 | 31 | 3 | 2.2 |
| 3 | KC V-05 | 1472 | 52 | 5 | 3.7 |
| 4 | KC V-7.5 | 2492 | 88 | 7.5 | 5.5 |
| 5 | KC V-10 | 3738 | 132 | 10 | 7.5 |
| Constant vacuum output: 450 mm, 17.5" of Hg, 600 mbar. | |||||
| System capacities are shown as per NFPA - reserve pump on standby. | |||||
| Standard receiver capacities: 150, 300, 500, 1000, 2000, 3000 Liters and so on. | |||||
